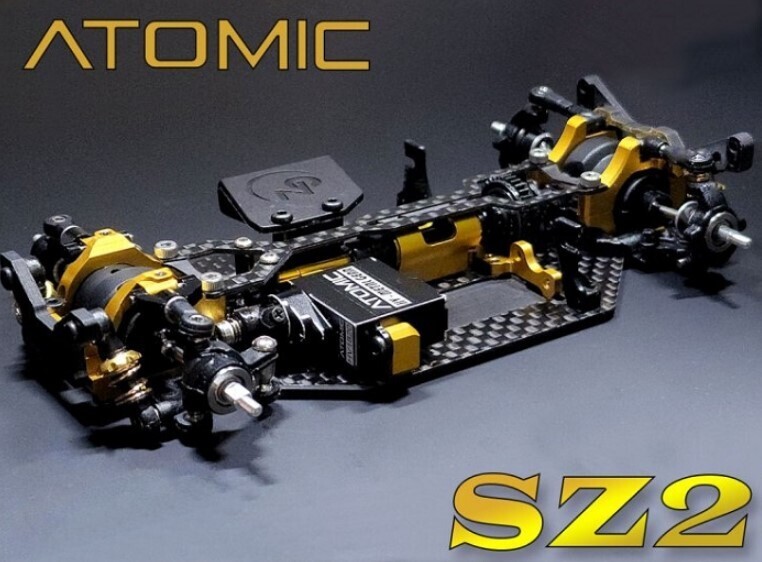

Atomic SZ2 Shaft Drive AWD Chassis Kit (No Electronic) SZ2-KIT

The SZ2 features a center differential between the front and rear axles to compensate for the different wheel speeds between the axles from different cornering radii.

Remember that we usually have smaller diameter front tires compared to the rear, therefore the front axle is spin faster than the rear does.

Center Diff prevents torsional stresses in the drive train and automatically distributes the driving forces, thus the car drive more smoothly around corner and better acceleration.

Features and Highlights of the SZ2:

• Center Differential.
• New longer rear arm and upright with flange bearing.
• Stock car come with servo saver.
• Come with 2 types of servo mounts, suitable for both 8mm and 11mm thick Atomic servos.
• 2.0mm thick carbon fiber chassis plate.
• Extremely low CG (center of gravity).
• We recommend this bumper and these posts to fit a Lexan body.

Required to complete this kit:

• Radio System (Transmitter; Receiver with JST-ZH-3 plugs)
• 130 (1410/1625) sized Brushless Motor
• ESC compatible with chosen motor
• Micro Servo suitable to 1/28 Scale RC Car
• 2s Lithium-Polymer battery (maximum dimensions: 42mm x 18mm x 18mm) and suitable Charger
• Wheels and Tires
• Kyosho type Body (98mm wheelbase) or Lexan body and mounting system.
